Hella Antares 9 LED Combo Set
R14,380.00
Hella Antares 9 LED Daytime Running Light Combo set.
Includes : 2 x covers, wiring harness, 2 x adapters (H4 & HB3)
2 in stock
Description
Hella Antares 9 LED Daytime Running Light with Plug & Play Harness
Illuminate the darkest roads with the HELLA Antares 9” LED Driving Lights—engineered for maximum visibility and durability.
Key Features:
-
Superior Illumination: Composite beam design delivers 1LUX at 800m+ range and 80m width.
-
Tough Construction: IP69K dust & waterproof, diecast aluminium housing, and UV-stable polycarbonate lens.
-
Selectable Output Modes: Switch between high (215W) and low (120W) output for optimal comfort.
-
Daytime Running Lights (DRL): Enhances visibility for safer driving in all conditions.
-
Plug & Play Installation: Includes H4 & HB3 adapters for easy setup.
-

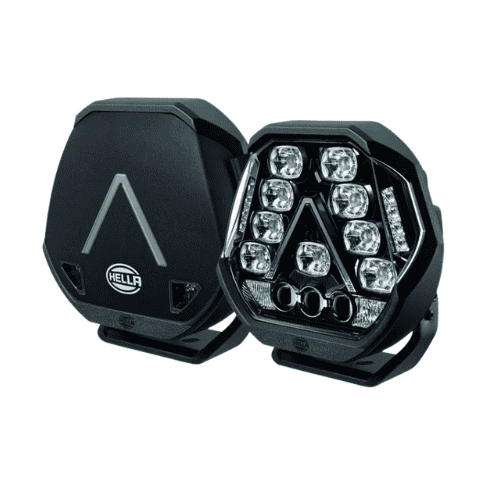

Smart Cover Detection: Automatically switches off the main beam when covers are applied.
Technical Specifications per light:
-
Output: 8,500 lumens (high), 5,700K colour temperature
-
LED Configuration: 52 LEDs with projector spot beams & wide-beam clusters
-
Power: High mode: 215W, Low mode: 120W
-
Voltage: 10–30V DC (compatible with 12V & 24V systems)
-
Protection: Overvoltage, polarity reversal, active thermal management
-
Weight: 2.2kg per light
Kit Includes:
-
2x LED driving lights with mounting hardware
-
2x Protective covers
-
1x Wiring harness
-
2x Adapters (H4 & HB3)
-
1x Installation manual
1. Is the HELLA Antares 9” waterproof?
Yes. The HELLA Antares has an IP69K rating, meaning it is completely dustproof and can withstand high-pressure water and extreme weather conditions.
2. Does the HELLA Antares include Daytime Running Lights (DRL)?
Yes. The integrated DRL improves daytime visibility and adds a sleek, modern look to your vehicle.
3. Can I install the HELLA Antares myself?
Yes. The kit includes a Plug & Play wiring harness and H4/HB3 adapters for simple installation. However, professional fitting is recommended for best results.
4. Is the HELLA Antares road legal?
Yes, HELLA driving lights are E-mark approved and can be legally used on-road when installed according to local regulations.
5. What vehicles are compatible with the HELLA Antares 9”?
The Antares is suitable for most 12V and 24V vehicles, including popular models like Toyota Hilux, Ford Ranger, and Isuzu D-Max.
6. Does it include a wiring harness?
Yes. The kit includes a complete Plug & Play harness, mounting hardware, and installation manual.
7. How bright is the HELLA Antares compared to similar products?
With 8,500 lumens output and a 1 LUX beam reaching beyond 800 metres, the HELLA Antares outperforms many standard 9” LED driving lights in both distance and clarity.
8. Does it come with a warranty?
Yes. HELLA provides a 12-month warranty on the Antares lights, covering manufacturing defects.
9. Where can I buy replacement parts or covers?
Replacement covers and components are available online via our store.
| Specification | Details |
|---|---|
| Brand | HELLA |
| Model | Antares 9″ LED Driving Light with DRL |
| Size | 9 Inches (approx. 228 mm diameter) |
| Light Output (Raw Lumens) | 8,500 lm (high mode) |
| Light Output (Effective Lumens) | Optimised for maximum beam distance and spread |
| Beam Distance (Approx.) | 1 LUX @ 800 m (approx. 80 m beam width) |
| Color Temperature | 5,700 K (pure white) |
| Power Consumption | High: 215 W / Low: 120 W |
| Voltage | Multi-voltage 10–30 V DC (compatible with 12 V & 24 V systems) |
| LED Configuration | 52 LEDs (projector spot beams + wide-beam clusters) |
| Beam Pattern | Composite beam – combination of spot and wide illumination |
| Selectable Output Modes | High and Low output modes for adaptable performance |
| Daytime Running Light (DRL) | Integrated DRL enhances visibility and appearance |
| Smart Cover Detection | Automatically disables main beam when covers are applied |
| Material | Die-cast aluminium housing with UV-stable polycarbonate lens |
| Waterproof / Dustproof Rating | IP69K (fully sealed, high-pressure water and dust resistant) |
| Protection Features | Overvoltage, polarity reversal, and active thermal management |
| Cooling System | Integrated thermal management for optimal LED performance |
| Mounting Kit | Included (mounting brackets, bolts, and covers) |
| Compatibility | Universal fit for 4×4s, trucks, SUVs, and off-road vehicles |
| Wiring Harness | Plug & Play harness included (H4 & HB3 adapters) |
| Weight | 2.2 kg per light |
| Operating Temperature | –40 °C to +60 °C |
| Warranty | 12-month manufacturer’s warranty |
| Country of Origin | Germany |
| Included Accessories | 2x LED driving lights, 2x covers, wiring harness, adapters, and manual |
* Product specifications, features, and included accessories are subject to change without prior notice by the manufacturer. Hella continuously improves product design and performance; therefore, actual product details may vary slightly from the information listed above.
